Descripción
GPU

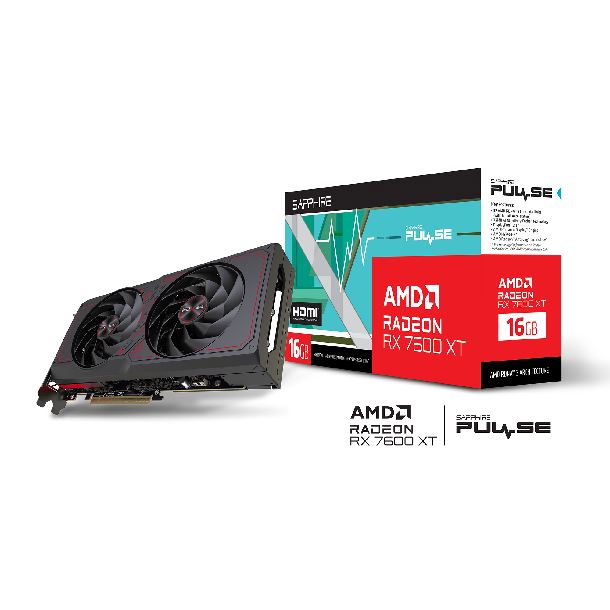

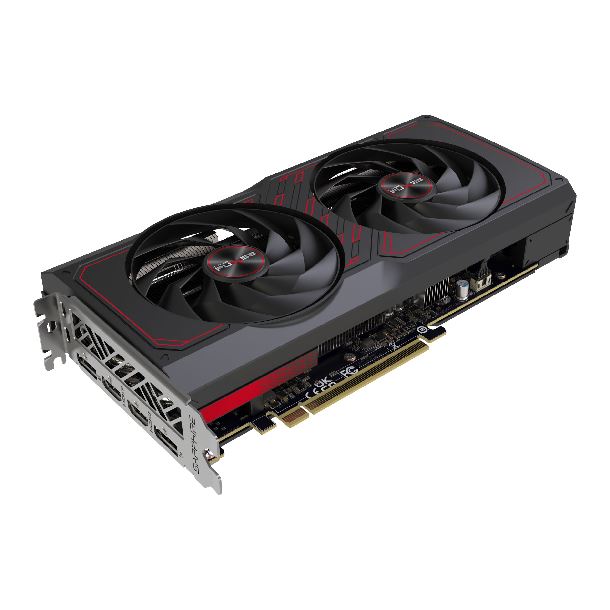

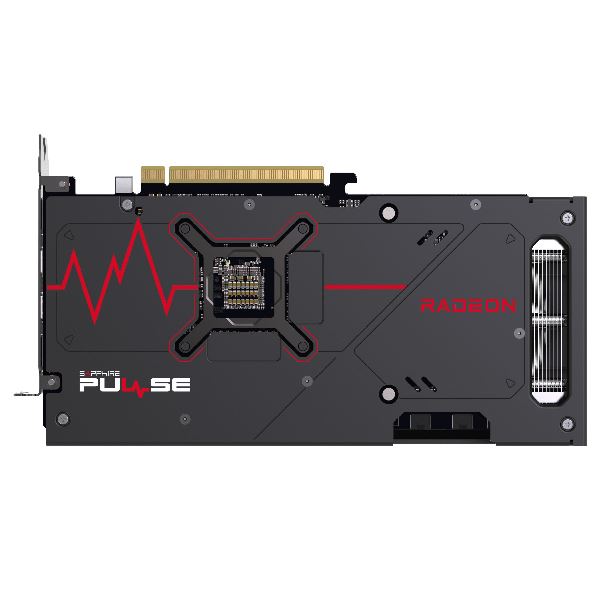

AMD Radeon™ RX 7600 XT Graphics Card
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2810 MHz
Game Clock: Up to 2539 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 2048
Compute Units 32 CU
Infinity Cache 32MB
Ray Accelerators 32
AI Accelerator 64
Memory Size/Bus 16GB/128 bit GDDR6
Memory Clock 18 Gbps Effective
Displays Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface PCI-Express 4.0 x8
Output
2x HDMI
2x DisplayPort
BIOS Support
UEFI
Cooler Type 2 Fans
Form Factor 2.2 slot, ATX
Dimension: 250(L)X 129.25(W)X 44.56 (H)mm
Power Consumption 192W Total Board Power
System Requirement
Minimum 600 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
