Descripción

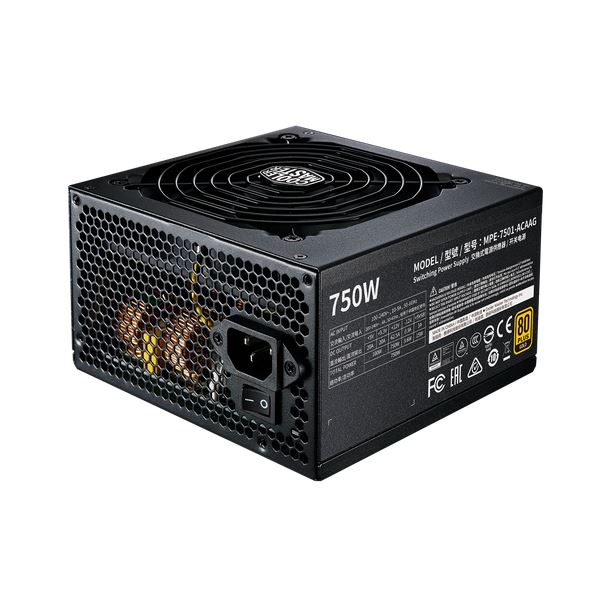

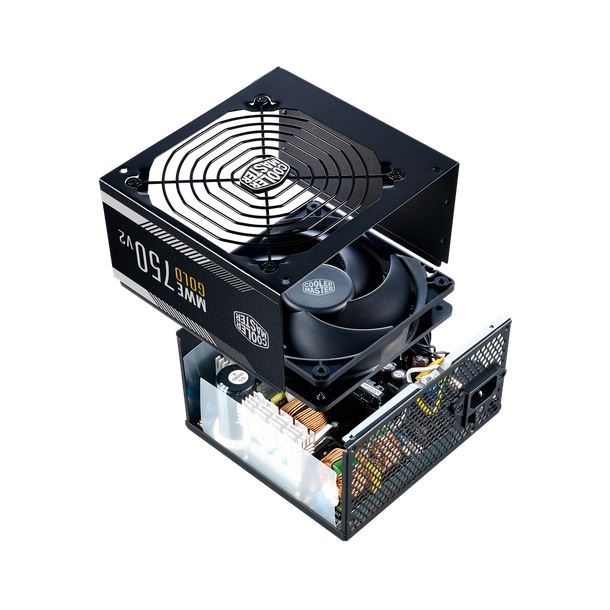

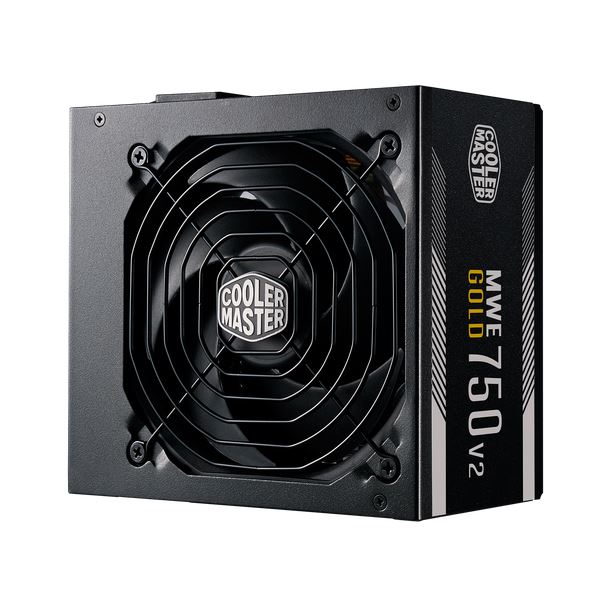

Model MPE-7501-ACAAG
ATX Version ATX 12V Ver. 2.41
PFC Active PFC
Input Voltage 100-240V
Input Current 10-5A
Input Frequency 47-63Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing HDB
Fan Speed 1500 RPM
Noise Level @ 20% 0 dBA
Noise Level @ 50% 17.8 dBA
Noise Level @ 100% 24.9 dBA
Efficiency =90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 150 ms
Hold Up Time >16ms at 100% Load
MTBF >100,000 Hours
Protections OVP, OPP, OTP, SCP, OCP, UVP
Regulatory TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 12
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
Series MWE Gold Series
80 Plus Gold
Modular Non Modular
