Descripción

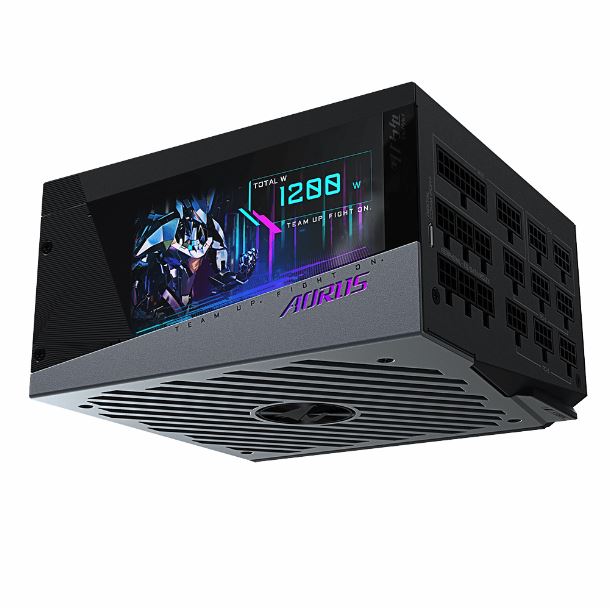

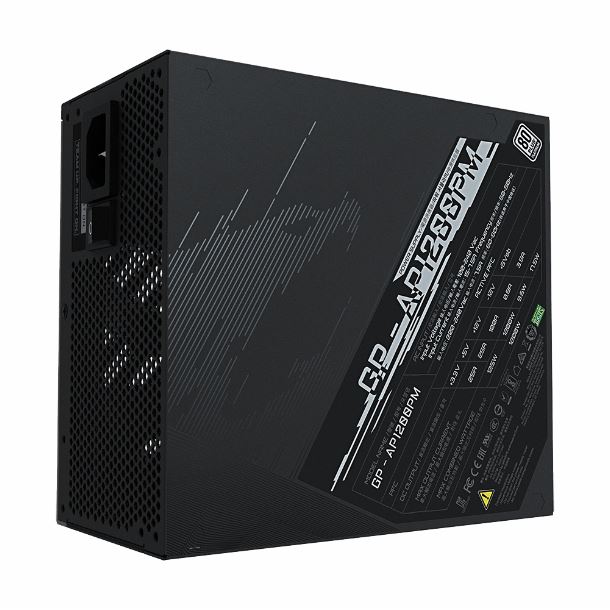

Model GP-AP1200PM
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-7.5A
Input Frequency 60-50 Hz
Output Capacity 1200W
Dimension 150 x 160 x 86mm
Fan Type 140mm Double ball bearing Fan
80 PLUS Platinum
Efficiency 92% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black

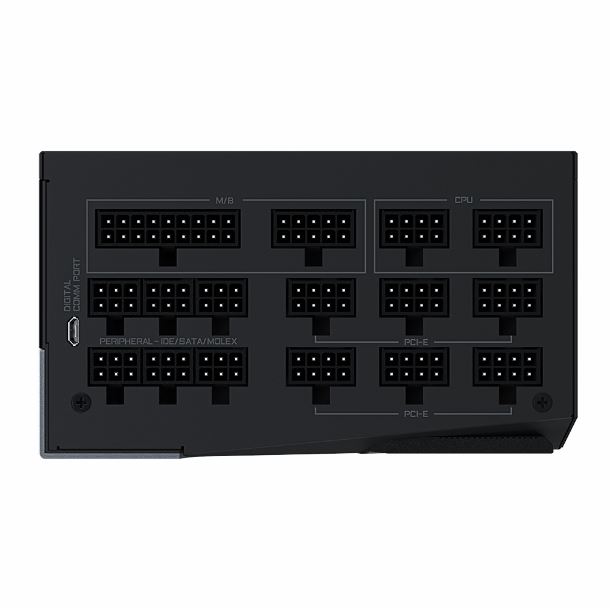

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2
SATA x 16 : 650mm+150mm+150mm+150mm*4
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2
*** NO INCLUYE CABLE POWER ***
