Descripción
Procesador
Built in with an Intel® Quad-Core Celeron® N4120 (2.6 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
4 MB Cache
Memoria
2 x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Integrados
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Puertos de Expansión
1 x PCI Express x1 slot, running at x1
(The PCIEX1 slot conforms to PCI Express 2.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module
Interfaz de Almacenamiento
Integrated in the SoC:
1 x M.2 connector (Socket 3, M key, type 2280/2260/2242 SATA and PCIe 2.0 x2 SSD support)
2 x SATA 6Gb/s connectors
* Refer to "2-6 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
Integrated in the SoC:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
1 x SoC fan header
1 x system fan header
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x parallel port header
1 x serial port header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

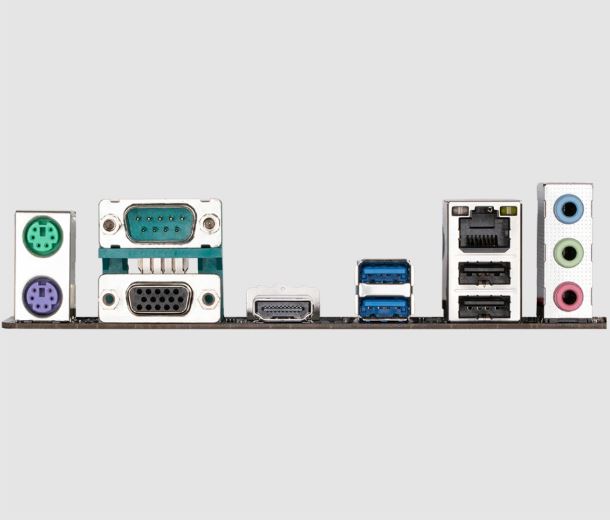

Conectores del Panel Trasero
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x serial port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Controlador de E/S
iTE® I/O Controller Chip
Monitorización H/W
Voltage detection
Temperature detection
Fan speed detection
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas
Support for Xpress Install
Support for @BIOS
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Software Incluido
Norton® Internet Security (OEM version)
LAN bandwidth management software
Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Diseño
Mini-ITX Form Factor; 17.0cm x 17.0cm
