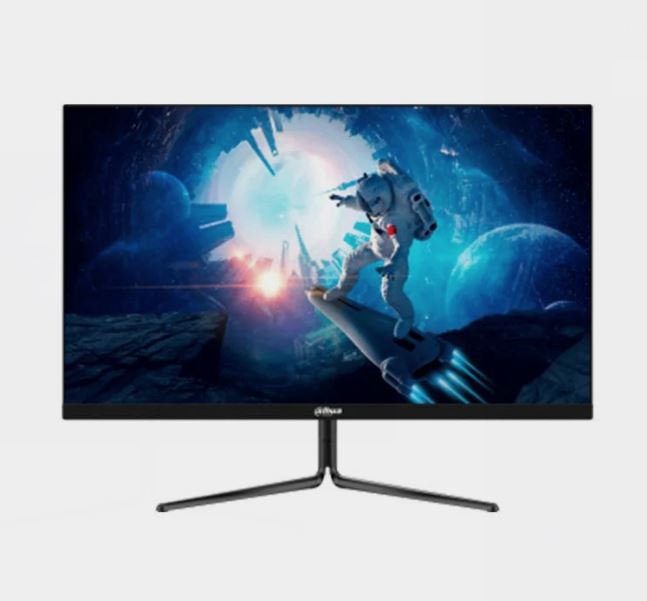

23.8?? FHD IPS Monitor
The 1920x1080 resolution produces clearer and more vivid pictures;
IPS panel for wide viewing angles with 3-sided frameless design;
Wide color gamut, 100% sRGB, 85% NTSC, 85% DCI-P3, 80% Adobe RGB. It meets the designer s demand of image texture;
178°H/178°V extra-wide viewing angle for all-round viewing performance;
Adaptive sync can effectively solve picture lagging and tearing problems;
1ms fast response time with no image blurring or ghosting;
Model
Model
DHI-LM24-E231
Display
Screen Size
23.8"
Panel type
IPS
Aspect Ratio
16:9
Resolution
1920x1080
Backlight
E-LED
Brightness/Luminance
300nits(typ)
Contrast Ratio
1000:1
Color Support
100% sRGB, 85% NTSC, 85% DCI-P3, 80% Adobe RGB
Viewing Angle(H/V)
178°(H)/178°(V)
Response time
1ms(OD)-Fast IPS
Refresh Rate
165Hz
Signals
Interface
DP1.2×1,HDMI 1.4×2,Audio out×1
General
Power Supply
DC 12V 2.5A
Power Type
Adapter
Consumption (Standard)
TYP. 23W, MAX. 33 W
Consumption (Standby)
0.5W
Net Weight
3.9kg
Gross Weight
5.6kg
Tilt Angles
-5°±2°/15°±2°
Swivel(angle)
N/A
Pivot(angle/direction)
N/A
Height Adjustment
N/A
VESA
75x75mm
Dimension(W×H×D)
539.6x321.3x64.6mm(without stand)
Package(W×H×D)
649x172x443mm
Work Environment
Temperature
0°~40°(32°F~104°F)
Humidity
10%~85%
Accessory
Standard
DP cable,Adapter,Stand,Base">
