Descripción
P/N CA-1P6-00M6WN-00
La serie View

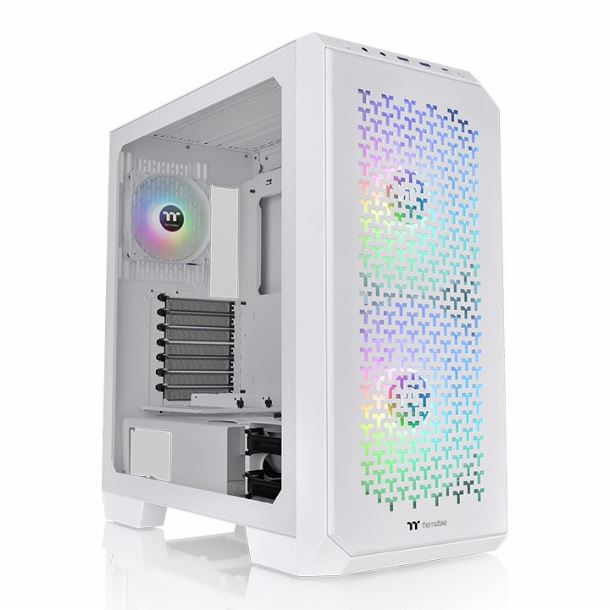

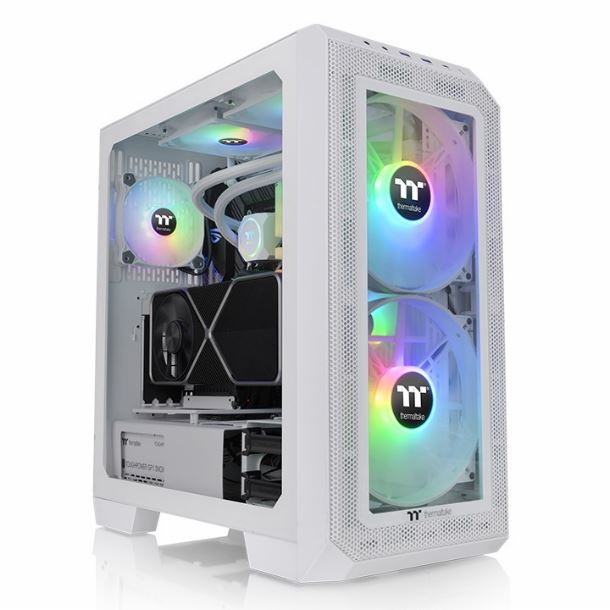

Modelo View 300 MX
TIPO DE CAJA Mid Tower
DIMENSIONES (AL x AN x PR) 505 x 230 x 506 mm
PESO NETO 10.4 kg
PANEL LATERAL 4mm Tempered Glass x 1
Color White
Material SPCC + ABS
SISTEMA DE REFRIGERACIÓN
Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1
BAHÍAS DE EXPANSIÓN
2 x 3.5”, 4 x 2.5” or 6 x 2.5”
RANURAS DE EXPANSIÓN
7 (Rotatable Patented Design)
PLACAS BASE
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
PUERTOS E/S
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
FUENTE DE ALIMENTACIÓN
Standard PS2 PSU (optional)
COMPATIBILIDAD VENTILADORES
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
1 x 200mm
Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack)
Rear: 1 x 120mm
COMPATIBILIDAD RADIADORES
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack)
Rear: 1 x 120mm
LIMITACIONES
CPU cooler height limitation: 175mm
VGA length limitation: 280mm(With reservoir)
400mm(Without reservoir)
PSU length limitation: 200mm
