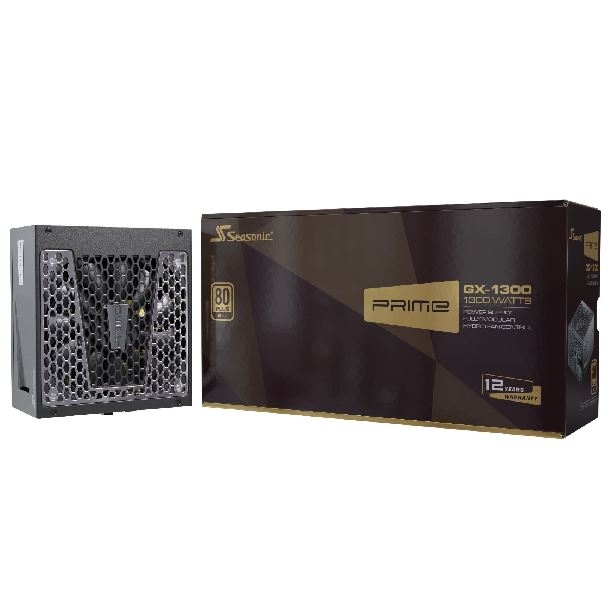

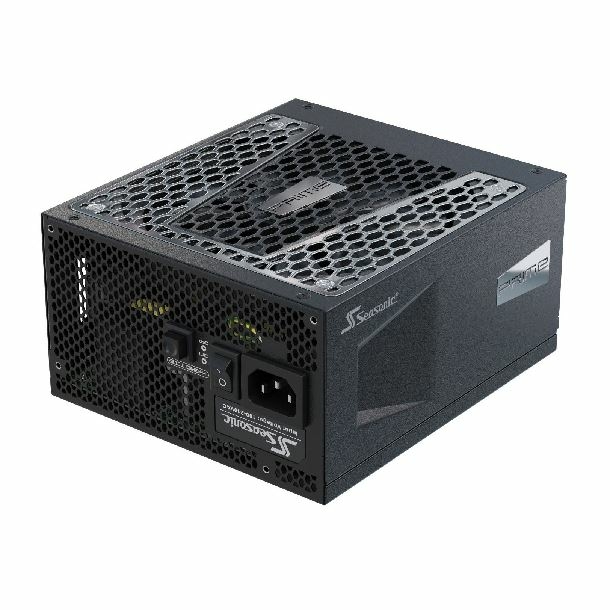

PRIME-GX-1300
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 170 mm (W) x 150 mm (L) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control Premium Hybrid Fan Control - fanless untli 20% load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Webbed cables (MB, CPU, PCIe)
Flat black cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 150,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Power Output
AC Input Voltage: 100 V - 240 V
Current: 15 A�7.5 A
Frequency: 50 Hz�60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 108 A 0.3 A 3 A
125 W 1296 W 3.6 W 15 W
Total continuous power 1320 W
